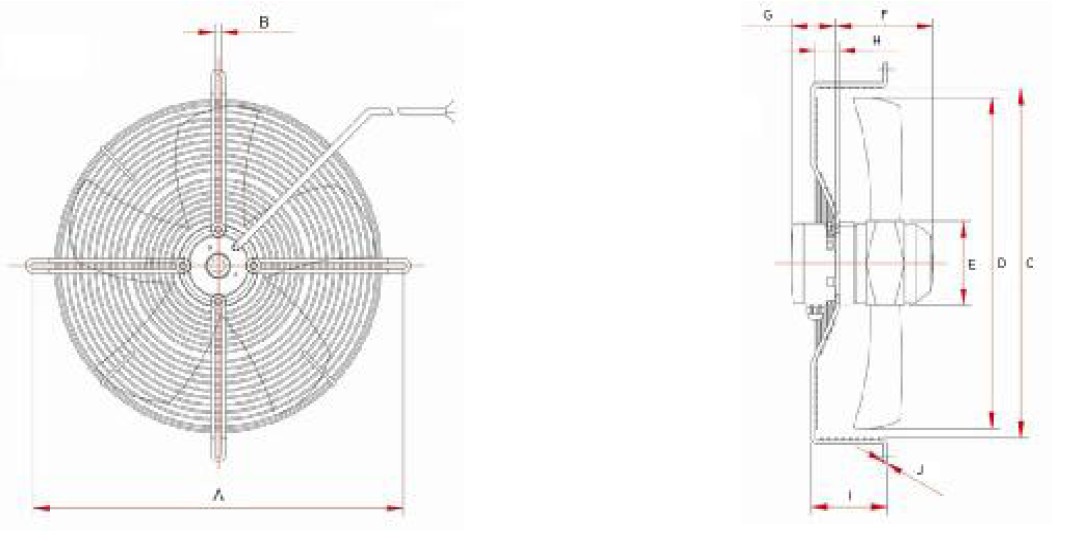

Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
|
KFA200HB2M |
260 |
7 |
225 |
200 |
92 |
71 |
55 |
|
45 |
￠4 |
|
|
|
|
KFA250HB2M |
330 |
7 |
280 |
250 |
92 |
75 |
20 |
30 |
80 |
￠4 |
|
|
|
|
KFA300HB2M |
360 |
7 |
325 |
300 |
92 |
85 |
30 |
30 |
80 |
￠4 |
|
|
|
|
KFA315HB2M |
380 |
7 |
335 |
315 |
92 |
85 |
55 |
30 |
80 |
￠4 |
|
|
|
|
KFA330HB2M |
402 |
7 |
350 |
330 |
102 |
110 |
55 |
30 |
80 |
￠5 |
|
|
|
|
KFA350HB2M |
422 |
9 |
375 |
350 |
102 |
110 |
55 |
30 |
80 |
￠5 |
|
|
|
|
KFA380HB2M |
450 |
9 |
400 |
380 |
102 |
125 |
55 |
30 |
80 |
￠5 |
|
|
|
|
KFA400HB2M |
470 |
9 |
425 |
400 |
102 |
125 |
55 |
30 |
90 |
￠5 |
|
|
|
|
KFA450HB2M |
522 |
9.5 |
475 |
450 |
102 |
137 |
55 |
30 |
90 |
￠6 |
|
|
|
|
Listed Model |
Bearing System |
Rated Voltage |
Operation Voltage |
Frequency |
Rated Current |
Rated Speed |
Power |
Air Flow |
Air pressure |
Noise Level |
Available Features (Optional) |
|
Part NO. |
B / S |
VAC |
VAC |
Hz |
A |
RPM |
W |
CFM |
mmH2O |
dBA |
Tachometer Output |
Autorestart |
Pulse Width Modulation |
|
|
KFA200HB2M |
B |
230 |
176~264 |
50/60 |
0.31 |
2,700 |
69 |
443 |
8 |
56 |
● |
● |
● |
|
|
KFA250HB2M |
B |
230 |
176~264 |
50/60 |
0.49 |
2220 |
110 |
580 |
6 |
60 |
● |
● |
● |
|
|
KFA300HB2M |
B |
230 |
176~264 |
50/60 |
0.83 |
2525 |
175 |
1257 |
10 |
69 |
● |
● |
● |
|
|
KFA315HB2M |
B |
230 |
176~264 |
50/60 |
0.57 |
1310 |
96 |
1005 |
10 |
58 |
● |
● |
● |
|
|
KFAA330HB2M |
B |
230 |
176~264 |
50/60 |
0.58 |
1310 |
114 |
1055 |
10 |
63 |
● |
● |
● |
|
|
KFA350HB2M |
B |
230 |
176~264 |
50/60 |
0.92 |
1500 |
178 |
1535 |
11.5 |
68 |
● |
● |
● |
|
|
KFA380HB2M |
B |
230 |
176~264 |
50/60 |
0.72 |
1350 |
155 |
1716 |
9.5 |
63 |
● |
● |
● |
|
|
KFA400HB2M |
B |
230 |
176~264 |
50/60 |
1.39 |
1565 |
273 |
2403 |
9 |
75 |
● |
● |
● |
|
|
KFA450HB2M |
B |
230 |
176~264 |
50/60 |
2.12 |
1620 |
396 |
3106 |
9 |
74 |
● |
● |
● |
|
|
|
| |
|
|
|
