Material: Scroll Housing and impeller make of galvanised sheet steel
Option: Also available with discharge flange
Technical Features:Control input 0-10V/PWM, tach output
Type of protection: IP44
Mode of operation: Continuous operation(S1)
Safety: In process
Operation Temperature: -20℃～+60℃
|

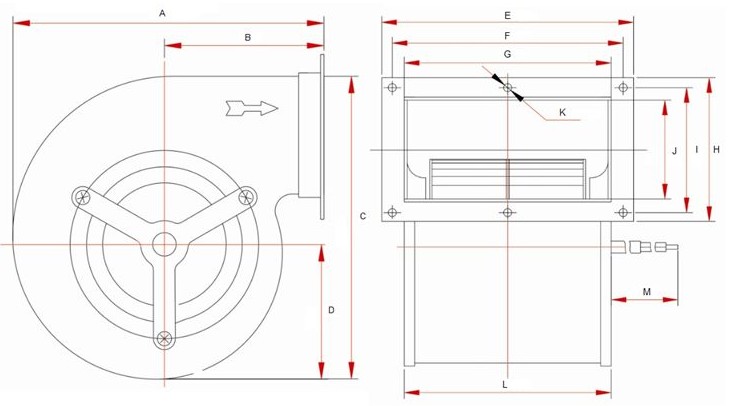

Dimension(mm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
|
KE2D133HB2M |
174 |
90 |
180 |
79 |
255 |
237 |
215 |
110 |
92 |
70 |
6X￠6 |
217 |
800 |
|
KE2D146HB2M |
210 |
100 |
218 |
97 |
270 |
252 |
230 |
140 |
122 |
100 |
6X￠6 |
232 |
800 |
|
KE2D160HB2M |
228 |
105 |
245 |
107 |
310 |
290 |
270 |
145 |
129 |
105 |
12X￠6 |
312 |
800 |
|
KE2D180HB2M |
297 |
133 |
333 |
136 |
300 |
480 |
250 |
275 |
254 |
225 |
NX￠7 |
252 |
800 |
|
KE2D200HB2M |
329 |
147 |
370 |
151 |
330 |
310 |
280 |
300 |
280 |
250 |
12X￠7 |
282 |
800 |
|
Major Characteristic Parameter |
|
|
|
|
|
|
|
|
|
|
|
Listed
Model |
Bearing
System |
Rated Voltage |
Operation Voltage |
Frequency |
Rated
Current |
Rated
Speed |
Power |
Air
Flow |
Air
pressure |
Noise
Level |
Available Features (Optional) |
|
Part NO. |
B / S |
VAC |
VAC |
Hz |
A |
RPM |
W |
CFM |
mmH2O |
dBA |
Tachometer
Output |
Autorestart |
Pulse Width
Modulation |
|
KE2D133HB2M |
B |
230 |
176~264 |
50/60 |
0.85 |
1,500 |
173 |
400 |
35 |
60 |
● |
● |
● |
|
KE2D146HB2M |
B |
230 |
176~264 |
50/60 |
1.1 |
1660 |
227 |
559 |
48 |
61 |
● |
● |
● |
|
KE2D160HB2M |
B |
230 |
176~264 |
50/60 |
1.9 |
1860 |
373 |
765 |
15 |
65 |
● |
● |
● |
|
KE2D180HB2M |
B |
230 |
176~264 |
50/60 |
0.55 |
1050 |
264 |
1118 |
24 |
63 |
● |
● |
● |
|
KE2D200HB2M |
B |
230 |
176~264 |
50/60 |
0.91 |
1100 |
436 |
1471 |
31 |
64 |
● |
● |
● |
|
