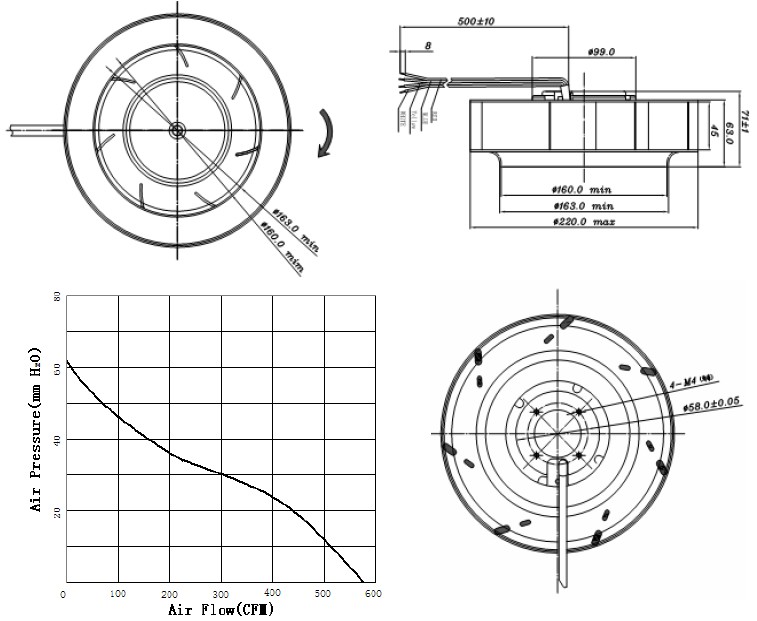

220mmx71mm DC Backward Curved Impellers
Weight: 1.45kg Impeller: Plastic PA6.6(polyamide glass-fibre reinforced) Injection-moulded round sheet-metal plate Motor: DC brushless external rotor Motor Rotor: Black paint Lead Wire: AWG#20 UL 1007 Insulation: Class A Safety: In process Operation Temperature:-25℃~+65℃
Listed Model |
Bearing System |
Rated Voltage |
Operation Voltage |
Rated Current |
Rated Speed |
Air Flow |
Air pressure |
Noise Level |
Available Features (Optional) |
Part NO. |
B / S / F |
VDC |
VDC |
A |
RPM |
CFM |
mmH2O |
dBA |
Tachometer Output |
Autorestart |
Pulse Width Modulation |
KD48-220HB2M |
Ball |
48 |
36~56 |
2.3 |
2,800 |
573 |
61.2 |
65 |
● |
● |
● |
KD24-220HB2M |
24 |
16~28 |
4.5 |
2,800 |
573 |
61.2 |
65 |
● |
● |
● |
|
